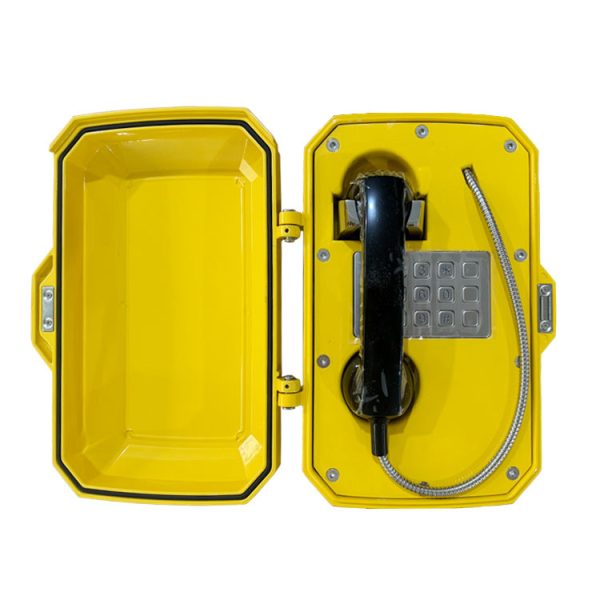

It is an industrial weatherproof outdoor telephone which is fully contained within a corrosion resistant cast aluminium alloy waterproof case.With a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
With a professional R&D team in industrial telecommunication filed since 2005 Year, Each weatherproof telephone have been waterproof tested and obtain international certificates. We have our own factories with self-made telephone parts，we can provide competitive, quality assurance, after-sale protection of weatherproof telephone for you.
Weatherproof heavy duty Telephone is designed for voice communication in harsh & hostile environment where reliability efficiency and safety are of prime importance.Like tunnel, marine, railway ,highway,underground,power plant,dock,etc.
The body of the telephone it is made of Aluminum alloy, a very strong die-casting material, used with generous thicknesses. The degree of protection is IP67, even with the door open. The door participates in keeping the inside parts like handset and keypad clean.
Several versions are available, with stainless steel armored cord or spiral, with or without door, with keypad, without keypad and on request with additional function buttons.
1.Aluminum alloy die-casting shell, high mechanical strength and strong impact resistance.
2. Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.
3. Stainless Steel Illuminated Keypad .Buttons can be programmed as function button like SOS,repeat,etc.
4. Support 2 lines SIP, SIP 2.0 (RFC3261).
5. Audio Codes:G.711, G.722, G.729.
6. IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP.
7. Echo cancellation code:G.167/G.168.
8. Supports full duplex.
9. WAN/LAN: support Bridge mode.
10.Support DHCP get IP on WAN port.
11.Support PPPoE for xDSL.
12.Support DHCP get IP on WAN port.
13.Weather proof Protection class to IP67.
14.Wall mounted, Simple installation.
15.The available colors as an option.
16.Self-made telephone spare part available. 18. CE, FCC, RoHS, ISO9001 compliant
This Weatherproof Telephone Is Very Popular For Tunnels, Mining, Marine, Underground, Metro Stations, Railway Platform, Highway Side, Parking Lots, Steel Plants, Chemical Plants, Power Plants And Related Heavy Duty Industrial Application, Etc.
| Item | Technical data |
| Signal Voltage | PoE,12V DC or 100-230VAC |
| Standby Work Current | ≤0.2A |
| Frequency Response | 250～3000 Hz |
| Ringer Volume | >85dB(A) |
| Corrosion Grade | WF2 |
| Ambient Temperature | -40～+70℃ |
| Atmospheric Pressure | 80～110KPa |
| Relative Humidity | ≤95% |
| Cable Gland | 2-PG11 |
| Installation | Wall-mounted |
If you have any color request, let us know the Pantone color No.
85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
World-class emergency communication systems: Our emergency communication systems are at the forefront of the world. Be able to stand out in the highly competitive European and American mainstream markets and replace traditional European and American enterprises. This shows that our solutions are innovative and effective and meet the high standards required in these regions.
Joiwo: 18 Years Leading in Emergency Comms Innovation
