This is a kind of public telephone with the protection class IP54,if it will be installed at the outdoor and dont have proof , we will strength the waterproof defend to IP65 depends on the customer’s demand.It is a solid case made of cold rolled steel with a powder coated finish for high mechanical strength and impact resistance, a highly reliable product with a long MTBF.The communication Mode could be chosen by analog , Voip ,GSM.
With the production test with many tests like electric acoustical test,FR test,High&Low temperature test,working life test etc.,each waterproof telephone have been waterproof tested and obtain international certificates. Over 85% telephone parts like cradle, keypad, handset are self-made ,we can provide best competitive, quality assurance, after-sale for you.

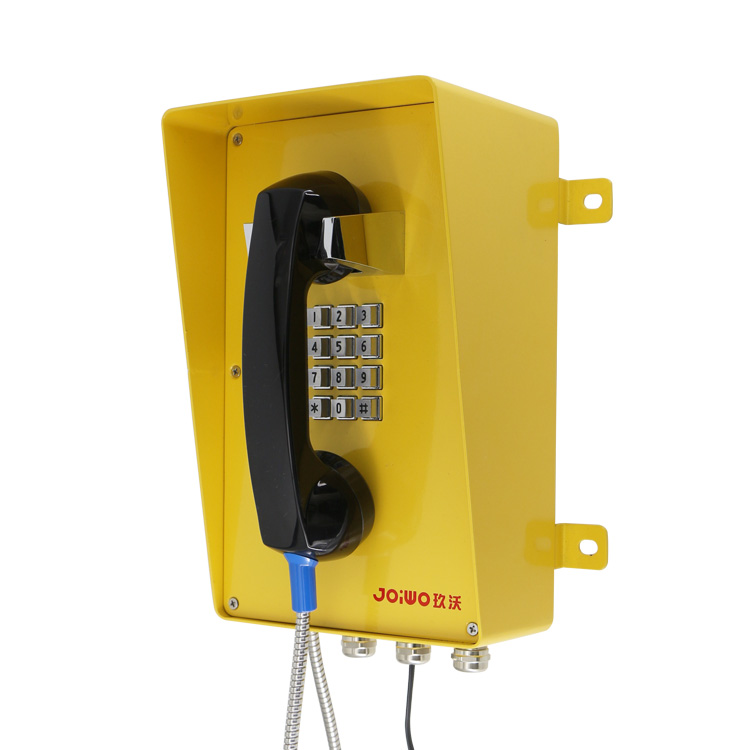

The JWAT316 emergency industrial telephone is made of cold-rolled steel, which is anti-corrosion, anti-oxidation, and durable.
Several versions are available, with stainless steel armored cord or spiral, with keypad, without keypad and on request with additional function buttons.
1.Standard Analogue phone. Phone line powered.
2.Robust housing, constructed of cold rolled steel with powder coated
3.Vandal resistant handset with Internal steel lanyard and grommet provides added security for handset cord.
4.Zinc alloy keypad .
5.Magnetic hook switch with reed switch.
6.Optional noise-canceling microphone available
7.Wall mounted, Simple installation.
8.Weather proof protection IP65.
9.Connection: RJ11 screw terminal pair cable.
10.Multiple color available.
11.Self-made telephone spare part available.
12. CE, FCC, RoHS, ISO9001 compliant.
This Public Telephone is Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.
| Item | Technical data |
| Power Supply | Telephone Line Powered |
| Voltage | DC48V |
| Standby Work Current | ≤1mA |
| Frequency Response | 250～3000 Hz |
| Ringer Volume | ≥80dB(A) |
| Corrosion Grade | WF1 |
| Ambient Temperature | -40～+70℃ |
| Atmospheric Pressure | 80～110KPa |
| Relative Humidity | ≤95% |
| Anti-vandalism Level | IK09 |
| Installation | Wall-mounted |
If you have any color request, let us know the Pantone color No.
85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
